Effective central
software & easy to connect and
use with mobile phones for the users

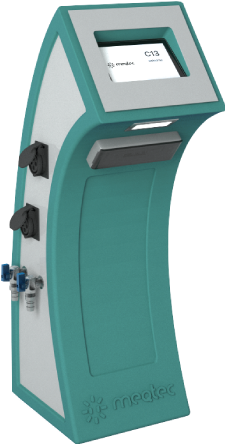

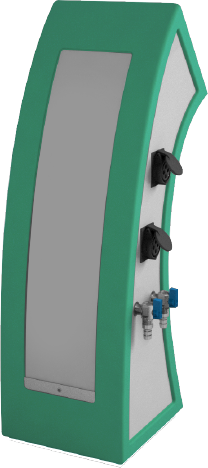

Curva series provides the widest range of features. From touch screen to stainless steel exterior, you can find any option you need on a service pedestal.
Material | High Density Polyethylene / Stainless Steel |
---|---|
Dimensions (DXLXH mm) | 350 x 380 x 1100 |
Weight | 15 kg |
Operating Temperature | -30°C + 60°C |
IP Rating | Pedestal IP66 |
Sockets IP67 | |
Impact Rating | IK10 |
Compliances | CE Certified |
EN 61439-7 | |
EN 62208 | |
Low/High Temperature EN 60068-2 | |
IP Rating EN 60529 | |
Impact Rating EN 62262 | |
Solar Radiation EN 60068-2-5 | |
Salt Fog/Mist/Corosion EN 60068-2-52 | |
Number of outlets | Power: 1 to 2 |
Water: 1 to 2 | |
Sockets | 16A Single Phase to 125A Three Phase |
Voltage | 115v to 400V / 50-60 Hz |
Overload & Fault Current Protection | Seperate for each outlet |
Taps | 1/2” valves, quick coupling |
Lighting | Low energy led with photocell sensor |
Metering | Electricity and water metering with remote |
monitoring and prepaid system |
